Separation ethanol extraction filter industrial centrifuge drum

Name: Separation ethanol extraction filter industrial centrifuge drum
Brand: Zonelink
Price: 8 USD

Wholesale Separation ethanol extraction filter industrial centrifuge drum from china suppliers

Place of Origin : Liaoning, China

Type : Centrifuge

Product Type : Centrifuge

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear

Brand Name : Zonelink

Voltage : Design for different country

Power : 5.5Kw

Weight : 850

Dimension(L*W*H) : 1400*1100*1300mm

Warranty : 1 Year

Key Selling Points : Flexible Manufacturing

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Constr

Showroom Location : None

Discharge Type : Filter Bag

Bowl Diameter : 600mm

Bowl Height : 450mm

Max Volume : 120-160L

Max Loading Capacity : 60Kg

Rotating Speed : 0-1200rpm

Separation Factor : 800

Filter Area : 0.66m2

Motor Power : 5.5Kw

Packaging Details : Standard Wooden Case Package

Port : Dalian Seaport

Supply Ability : 1000 Set/Sets per Year

Price : $8,000.00/sets 1-1 sets

Contact Now

Product Description

Separation ethanol extraction filter industrial centrifuge drum

Our company design and develop PGS flat plate type top discharge soaking centrifuge for hemp products and market.Compare with normal PS series filter centrifuge,we add these functions:low speed soaking,washing,running keep cool at low temperature.The centrifuge machine is batch operation and top discharge manually centrifugal extraction equipment.

Main Features

1)Soak type drum:The transmission part adopts three-stage sealing,it can achieve soaking at the drum and filtering separation function.

2)Low temperature:The main drive use low temperature grease and low temperature resistant imported bearings,which can feeding lowest -60℃ ethanol solution.In the equipment casing to do the cooling cavity,reserve the inlet and outlet,the user can feeding cold source.And,install the jacket,internal filling rock wool,to ensure the low temperature of the ethanol solution.

3)Explosion proof:The upper cover of the device is equipped with nitrogen port,the user can feeding nitrogen gas(inert gas) from nitrogen generator by himself.Equipped with explosion-proof inverter motor.The electrical part,we provide stainless steel remote main control cabinet and stainless steel control box with PLC and touch screen. 4)Batch operation:Put the dry material into the drum of centrifuge,feeding ethanol,low-speed soaking,high speed separation,shutdown and discharge whole process. 5)Material:The user can choose all stainless steel 304 material or stainless steel 316L. 6)Mesh bag:Nylon material,mesh can customized as customers’ requirement,suggest 800 mesh. It is a closed structure with a hidden zipper.

Structure & Principle

This machine is fully enclosed,has a large open cover structure.The upper cover is equipped with ethanol feeding port,washing port,mirror port,explosion-proof lamp port,nitrogen port,etc. It adopts the frequency converter to achieve smooth and infinitely variable speed starting, braking unit braking, and reliable performance.The feeding port can be equipped with manual ball valve,and the liquid outlet is equipped with a transparent glass to observe the liquid out condition,the liquid outlet is equipped with a manual ball valve.Pipe diameter size can be customized according to user’s needs.

Detailed Images

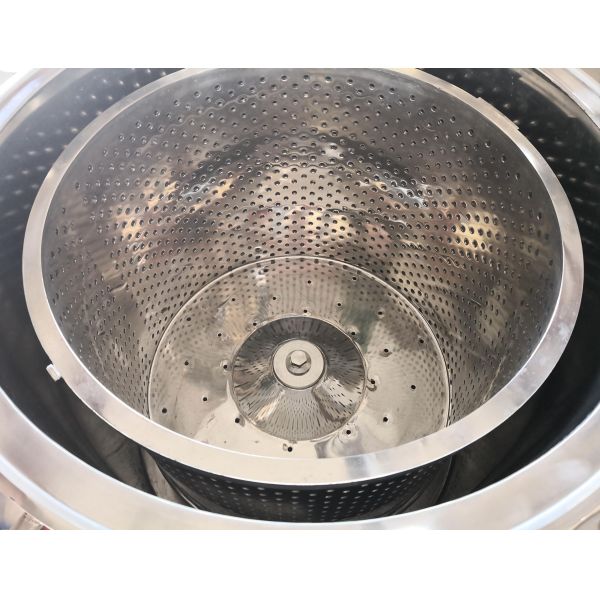

The rotating bowl of hemp soak centrifuge

This kind of soaking type drum is different from normal filter centrifuge drum,the height is higher than normal model, there is more space.And there is many holes to flow out ethanol.The transmission part of centrifuge adopts three-stage sealing device,it can achieve soaking at the drum and filtering separation function.

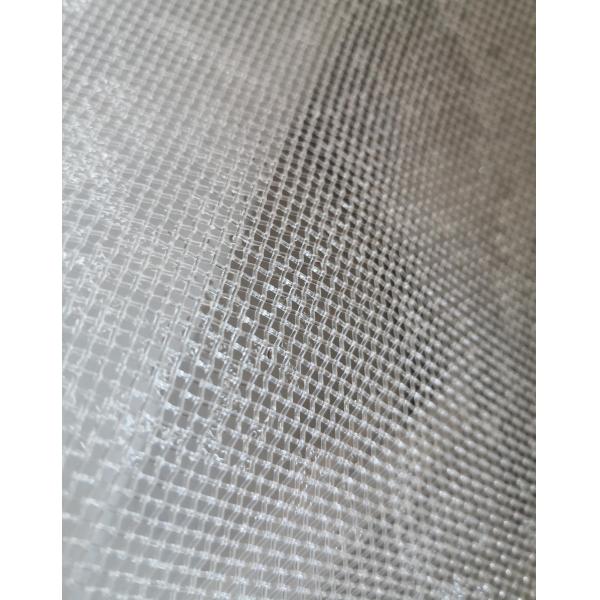

The filter cloth bag of hemp soak centrifuge

This kind of filter cloth bag is different from normal model.It is a closed structure with a hidden zipper.The user can put the hemp leaves into the bag,and install into the drum of centrifuge.The material is nylon,the mesh can be customized.

The connection spare parts of hemp soak centrifuge

The feeding port can be equipped with manual ball valve,and the liquid outlet can be equipped with a transparent glass to observe the liquid out condition,the liquid outlet is equipped with a manual ball valve.All pipe diameter size can be customized according to user’s needs.The spare parts material will be the same as machine material.

Package & Shipping

Separation ethanol extraction filter industrial centrifuge drum Images
